當前位置：首頁 » 歐美晶振 » 日蝕晶振 » EH1400SJETTTS-20.000M,Ecliptek陶瓷振蕩器,CMOS輸出晶振

prevnext

EH1400SJETTTS-20.000M,Ecliptek陶瓷振蕩器,CMOS輸出晶振

頻率：20.000MHz

尺寸：14x9.8x4.7mm

EH1400SJETTTS-20.000M,Ecliptek陶瓷振蕩器,CMOS輸出晶振，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：EH14系列，編碼為：EH1400SJETTTS-20.000M，頻率：20.000MHz，電壓：5V，工作溫度范圍：-40℃至+85℃，頻率穩定性：±100ppm，CMOS輸出晶振，小體積晶振尺寸：14x9.8x4.7mm表面封裝，四腳貼片晶振，有源晶振，SMD晶振，石英晶振，石英晶體振蕩器。具有超小型，輕薄型，高品質，高性能，高可靠性，耐熱及耐環境等特點。應用于：物聯網晶振，無線局域網晶振，羅拉模塊晶振，GPS定位晶振，安防設備晶振，智能家居等應用。

訂購熱線：86-0755-27838351

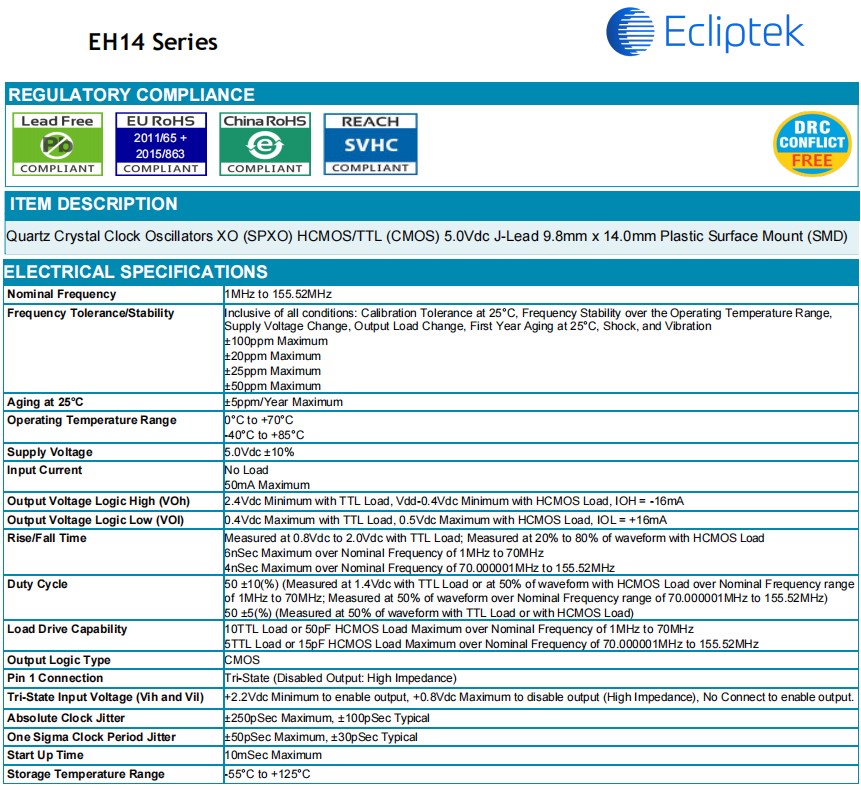

EH1400SJETTTS-20.000M,Ecliptek陶瓷振蕩器,CMOS輸出晶振,參數表

Nominal Frequency		20 MHz
Frequency Tolerance/Stability		Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±20ppm Maximum ±25ppm Maximum ±50ppm Maximum
Aging at 25°C		±5ppm/Year Maximum
Operating Temperature Range		0°C to +70°C -40°C to +85°C
Supply Voltage		5.0Vdc ±10%
Input Current		No Load 50mA Maximum
Output Voltage Logic High (VOh)		2.4Vdc Minimum with TTL Load, Vdd-0.4Vdc Minimum with HCMOS Load, IOH = -16mA
Output Voltage Logic Low (VOl)		0.4Vdc Maximum with TTL Load, 0.5Vdc Maximum with HCMOS Load, IOL = +16mA
Rise/Fall Time		Measured at 0.8Vdc to 2.0Vdc with TTL Load; Measured at 20% to 80% of waveform with HCMOS Load 6nSec Maximum over Nominal Frequency of 1MHz to 70MHz 4nSec Maximum over Nominal Frequency of 70.000001MHz to 155.52MHz
Duty Cycle		50 ±10(%) (Measured at 1.4Vdc with TTL Load or at 50% of waveform with HCMOS Load over Nominal Frequency range of 1MHz to 70MHz; Measured at 50% of waveform over Nominal Frequency range of 70.000001MHz to 155.52MHz) 50 ±5(%) (Measured at 50% of waveform with TTL Load or with HCMOS Load)
Load Drive Capability		10TTL Load or 50pF HCMOS Load Maximum over Nominal Frequency of 1MHz to 70MHz 5TTL Load or 15pF HCMOS Load Maximum over Nominal Frequency of 70.000001MHz to 155.52MHz
Output Logic Type		CMOS
Pin 1 Connection		Tri-State (Disabled Output: High Impedance)
Tri-State Input Voltage (Vih and Vil)		+2.2Vdc Minimum to enable output, +0.8Vdc Maximum to disable output (High Impedance), No Connect to enable output.
Absolute Clock Jitter		±250pSec Maximum, ±100pSec Typical
One Sigma Clock Period Jitter		±50pSec Maximum, ±30pSec Typical
Start Up Time		10mSec Maximum
Storage Temperature Range		-55°C to +125°C

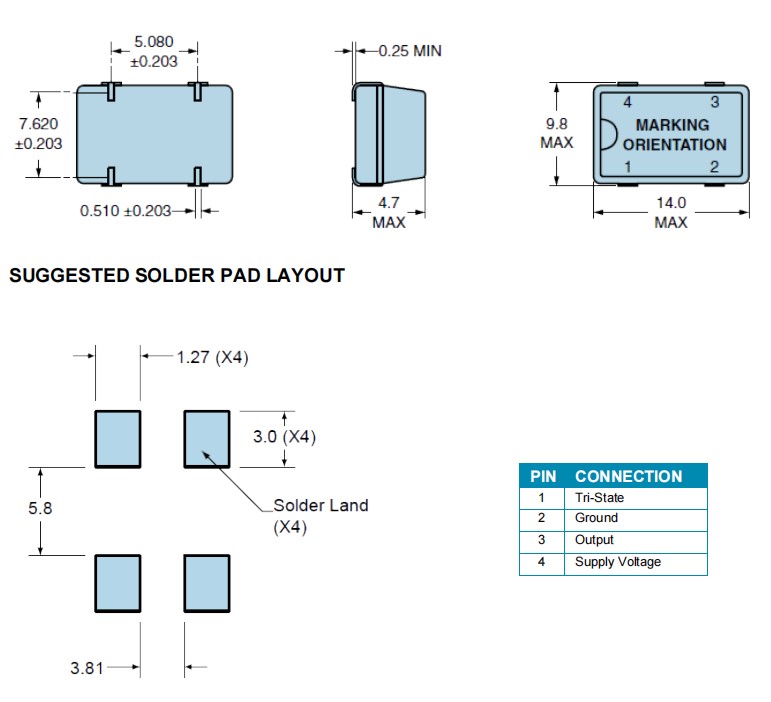

EH1400SJETTTS-20.000M,Ecliptek陶瓷振蕩器,CMOS輸出晶振,尺寸圖

產品編碼	品牌	型號	頻率	長	寬	高
EH1400SJETTS-1.000M	Ecliptek晶振	EH14	1 MHz	14mm	9.8mm	4.7mm
EH1400SJETTS-11.0592M TR	Ecliptek晶振	EH14	11.0592 MHz	14mm	9.8mm	4.7mm
EH1400SJETTS-25.000M	Ecliptek晶振	EH14	25 MHz	14mm	9.8mm	4.7mm
EH1400SJETTS-32.000M TR	Ecliptek晶振	EH14	32 MHz	14mm	9.8mm	4.7mm
EH1400SJETTS-40.000M	Ecliptek晶振	EH14	40 MHz	14mm	9.8mm	4.7mm
EH1400SJETTS-5.000M	Ecliptek晶振	EH14	5 MHz	14mm	9.8mm	4.7mm
EH1400SJETTS-5.000M TR	Ecliptek晶振	EH14	5 MHz	14mm	9.8mm	4.7mm
EH1400SJETTS-64.000M	Ecliptek晶振	EH14	64 MHz	14mm	9.8mm	4.7mm
EH1400SJETTS-70.656M	有源晶振	EH14	70.656 MHz	14mm	9.8mm	4.7mm
EH1400SJETTTS-1.8432M	Ecliptek晶振	EH14	1.8432 MHz	14mm	9.8mm	4.7mm
EH1400SJETTTS-16.667M	Ecliptek晶振	EH14	16.667 MHz	14mm	9.8mm	4.7mm
EH1400SJETTTS-16.670M	Ecliptek晶振	EH14	16.67 MHz	14mm	9.8mm	4.7mm
EH1400SJETTTS-16.670M TR	Ecliptek晶振	EH14	16.67 MHz	14mm	9.8mm	4.7mm
EH1400SJETTTS-20.000M	Ecliptek晶振	EH14	20 MHz	14mm	9.8mm	4.7mm
EH1400SJETTTS-32.000M	Ecliptek晶振	EH14	32 MHz	14mm	9.8mm	4.7mm
EH1400SJETTTS-36.000M	Ecliptek晶振	EH14	36 MHz	14mm	9.8mm	4.7mm
EH1400SJETTTS-40.000M	Ecliptek晶振	EH14	40 MHz	14mm	9.8mm	4.7mm
EH1400SJTS-16.000M	Ecliptek晶振	EH14	16 MHz	14mm	9.8mm	4.7mm
EH1400SJTTS-39.3216M TR	Ecliptek晶振	EH14	39.3216 MHz	14mm	9.8mm	4.7mm
EH1400SJTTS-4.9152M TR	Ecliptek晶振	EH14	4.9152 MHz	14mm	9.8mm	4.7mm
EH1420SJETTS-5.000M TR	Ecliptek晶振	EH14	5 MHz	14mm	9.8mm	4.7mm
EH1425SJETTS-24.576M	Ecliptek晶振	EH14	24.576 MHz	14mm	9.8mm	4.7mm
EH1445SJETTS-64.000M	Ecliptek晶振	EH14	64 MHz	14mm	9.8mm	4.7mm
EH1445SJETTTS-64.000M	Ecliptek晶振	EH14	64 MHz	14mm	9.8mm	4.7mm
EH1445SJTS-1.000M TR	Ecliptek晶振	EH14	1 MHz	14mm	9.8mm	4.7mm

EH1400SJETTTS-20.000M Ecliptek陶瓷振蕩器 CMOS輸出晶振
